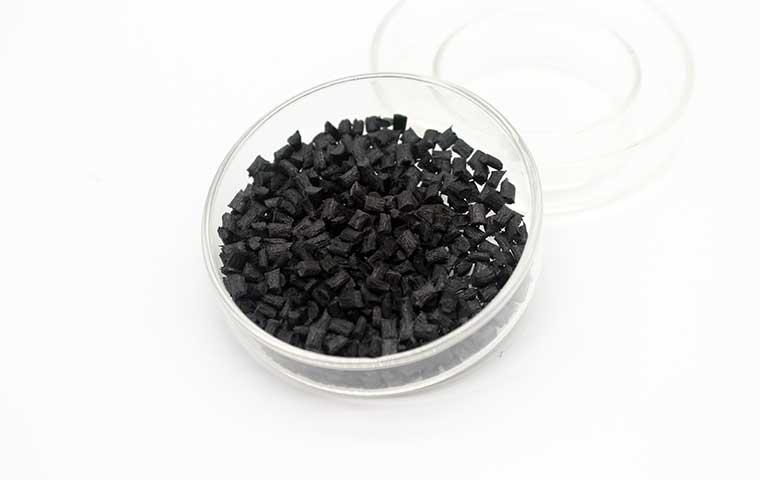

PA 66 GF 50 is a fiber-reinforced plastic made of Nylon 66 resin as a base material and 50% glass fiber as a reinforcing filler, and various processing aids be added to be used in injection molding products.
PA66 50%GF HB grade is applied to the field of industrial product structural parts, requiring high strength, high toughness, high and low-temperature resistance, and commonly used as water valve diverter and blade of air outlet, mechanical gears and bushings.
Physical Property
Ash | (50.0% 1 ISO3451/1) |
Conditioned | 600°C*2h |
Density | (1538Kg/m3 1 ISO1183) |
Conditioned | 23°C |
Shrinkage Parallel Flow | (0.1-0.3 % 1 ISO294-4) |
Shrinkage Vertical Flow | 0.2-0.5% I ISO294-4) |
Mechanical Properties
Tensile strength (217.0MPa 1 ISO527) Conditioned | 5mm/ min |
Tensile Strain at Break (2.5% I ISO527) Conditioned | 5mm/min |
Notched Impact Strength (17.0KJ/m2 I ISO179 Conditioned | 1.0J |
Flexural Strength (354 MPa 1ISO178) Conditioned | 2mm/min |
Flexural Modulus (14263 MPa I ISO178) Conditioned | 2mm/ min |
Thermal Property
Melting Point | (260°C I ISO11357) |
Hot Deformation Temperature | (260*C I ISO75) |
Conditioned | 1.8MPa |
Flammability Class | (HB 1UL94) |
Conditioned | mm |
Injection Molding Conditions
Drying Temperature | 130°C |
Drying Time | 3h |
Cylinder Temperature | 290-310°C |
Nozzle Temperature | 290-310*C |
Tooling Temperature | 80-100*C |
* Molding conditions are just for reference, please make an adjustment based on the actual situation！
