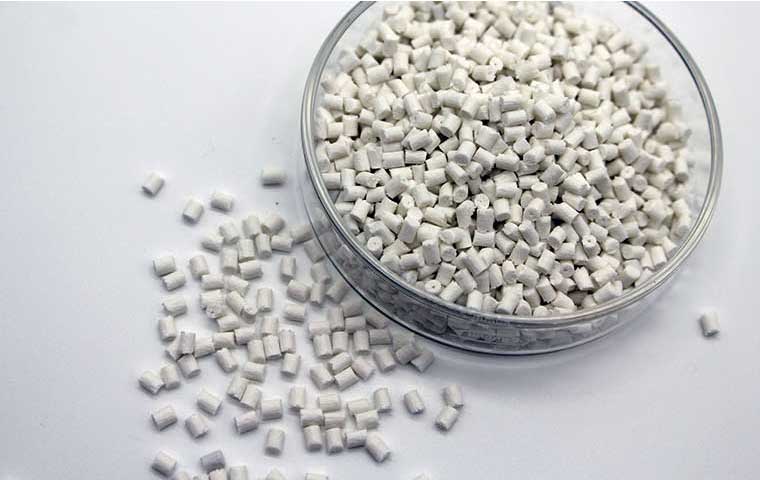

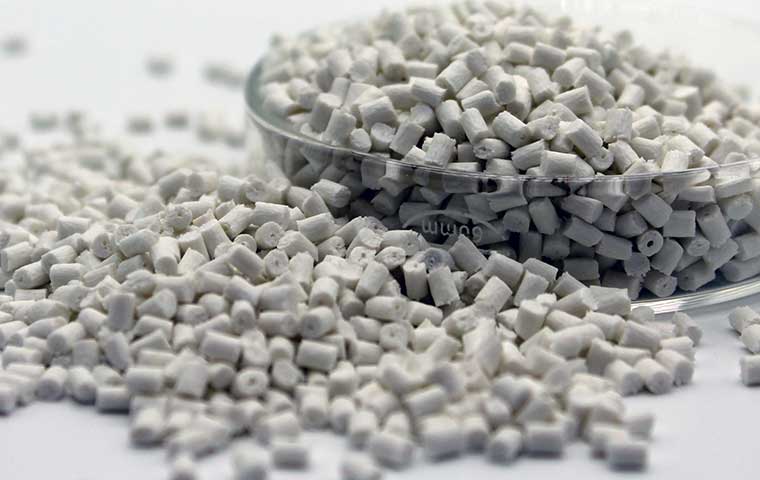

PA66 GF15 is Nylon66 and 15% Glass-Filled, these materials are performed with medium stiffness and strength but it has much better mechanical properties over unfilled granules. Reinforced with 15% of glass fiber and modified Nylon 66 products in Anmei plastic plant combined with other property enhancements such as high tensile strength, heat stabilized and flame retardant make it suitable for injection molding.
Other percentages glass-filled nylon is also available on a custom-order basis.
Nylon 66 GF15, mainly used in internal and external structural parts around the engine, electrical switches, and electronic connectors.
Physical Property
Ash | (15.0% 1 ISO3451/1) |
Conditioned | 600°C*2h |
Density | (1245Kg/m3 1 ISO1183) |
Conditioned | 23°C |
Shrinkage Parallel Flow | (0.7-1.0% 1 ISO294-4) |
Shrinkage Vertical Flow | (1.0-1.4% I ISO294-4) |
Mechanical Properties
Tensile strength (125.0MPa 1 ISO527) Conditioned | 5mm/ min |
Tensile Strain at Break (2.0% I ISO527) Conditioned | 5mm/min |
Notched Impact Strength 6.0KJ/m2 ISO179) Conditioned | 1.0J |
Flexural Strength (188MPa 1ISO178) Conditioned | 2mm/min |
Flexural Modulus (5350MPa I ISO178) Conditioned | 2mm/ min |
Thermal Property
Melting Point | (260°C I ISO11357) |
Hot Deformation Temperature | (240*C I ISO75) |
Conditioned | 1.8MPa |
Flammability Class | (HB 1UL94) |
Conditioned | mm |
Injection Molding Conditions
Drying Temperature | 130°C |
Drying Time | 3h |
Cylinder Temperature | 280-300°C |
Nozzle Temperature | 280-300*C |
Tooling Temperature | 80-100*C |
* Molding conditions are just for reference, please make an adjustment based on the actual situation！
