English
中文
Jul 06, 2023
Read More
Manufacturers usually add flame retardants to the masterbatch to change the properties of the material. The flame retardant is added to the synthetic polymer by a machine mixing method so that the polymer reaches the characteristics of being difficult to burn. At present, flame retardants in flame retardant PA6 mainly include halogen flame retardants and non-halogen flame retardants, organic flame retardants and inorganic flame retardants.
Our engineers have the expertise to formulate plastics to meet the performance criteria that are necessary for your application.

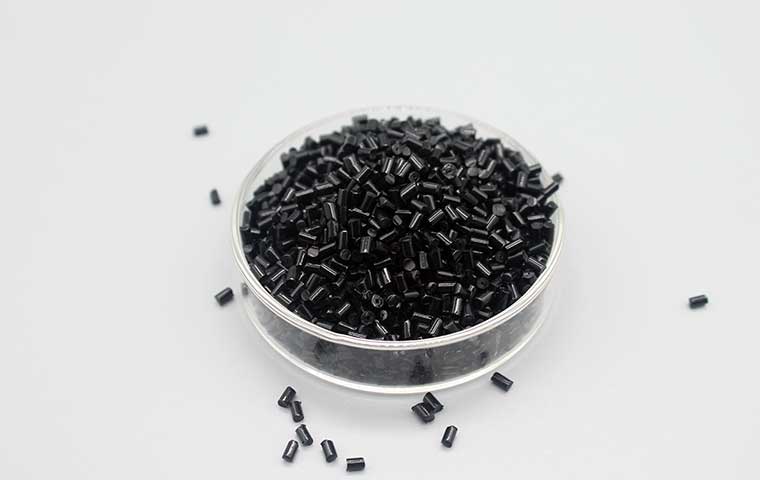

Flame-retardant modified PA6 (PA6 FR) is mainly suitable for high-temperature environments and is widely used in power tools, household appliances, automobiles and other industries.
Physical Property of Nylon 6 PA6 FR
Ash | (15.0% 1 ISO3451/1) |
Conditioned | 600°C*2h |
Density | (1200Kg/m3 1 ISO1183) |
Conditioned | 23°C |
Shrinkage Parallel Flow | (1.0-1.3 % 1 ISO294-4) |
Shrinkage Vertical Flow | (1.0-1.3% I ISO294-4) |
Mechanical Properties of Nylon 6 PA6 FR
Tensile strength (75.0MPa 1 ISO527) Conditioned | 50mm/min |
Tensile Strain at Break (6.0% I ISO527) Conditioned | 50mm/min |
Notched Impact Strength (4.0KJ/m2 ISO179) Conditioned | 1.0J |
Flexural Strength (108MPa 1ISO178) Conditioned | 2mm/min |
Flexural Modulus (3200 MPa I ISO178) Conditioned | 2mm/min |
Thermal Property of Nylon 6 PA6 FR
Melting Point | (220°C I ISO11357) |
Hot Deformation Temperature | (205*C I ISO75) |
Conditioned | 0.45MPa |
Flammability Class | (HB 1UL94) |
Conditioned | 1.6mm |
Injection Molding Conditions of Nylon 6 PA6 FR
Drying Temperature | 90°C |
Drying Time | 3h |
Cylinder Temperature | 220-240°C |
Nozzle Temperature | 220-240*C |
Tooling Temperature | 80*C |
* Molding conditions are just for reference, please make an adjustment based on the actual situation！
