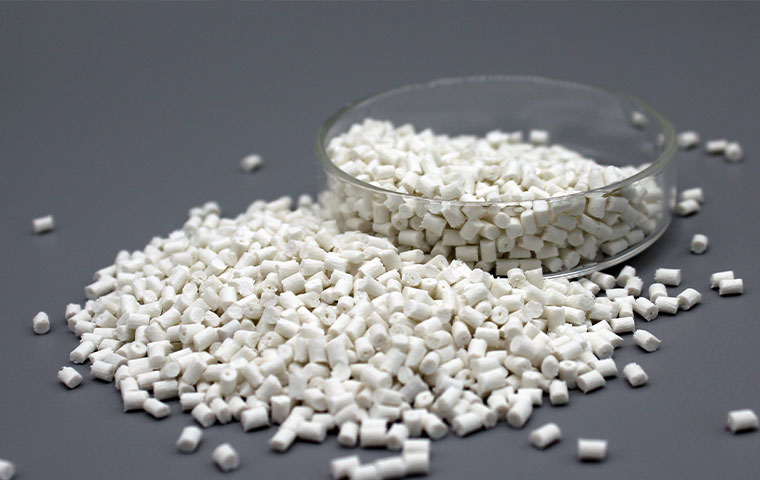

PA6 GF 20 has 20% glass fiber filler. It has much greater heat-resistant mechanical properties than unfilled polyamide. Anmeiplastics has always been producing reliable PA6 GF20 products for many years. We can provide you with the best chemical material. If you need high-quality PA6GF20, you can fill out the form below to connect with us.
Flame retardant pa material
Semi crystalline thermoplastic
Good impact strength and stiffness
Good low temperature performance
Outstanding wear resistance
Good temperature resistance
The degradation of thermal oxidation is reduced
Improved long-term heat and stability to ultraviolet and visible light
The automotive industry using PA6 GF20 includes many components, such as automotive dashboard, exterior panel, interior trim panel and steering Panels, soundproof panels, door locks, bumpers and air ducts. In terms of electrical appliances, PA6 GF20 is widely used in refrigerators, televisions, washing machines, air conditioners, computers, copiers and other electronic appliances.
In terms of building materials, PA6 GF20 is widely used in packaging, furniture, sports and entertainment products, machinery and instrumentation industries.
Glass fiber 20% PA6 reinforced (25% GF is workable as well) can be used for heat-resistant and high-strength structural parts such as machinery, auto parts, power tools, coil frames, engine covers, etc.
Physical Property of PA6 GF20
Ash | (15.0% 1 ISO3451/1) |
Conditioned | 600°C*2h |
Density | (1250Kg/m3 1 ISO1183) |
Conditioned | 23°C |
Shrinkage Parallel Flow | (0.5-0.7 % 1 ISO294-4) |
Shrinkage Vertical Flow | (0.7-1.1% I ISO294-4) |
Mechanical Properties of PA6 GF20
Tensile strength (125.0MPa 1 ISO527) Conditioned | 5mm/ min |
Tensile Strain at Break (2.5% I ISO527) Conditioned | 1.0J |
Notched Impact Strength (125 0MPa I ISO527) Conditioned | 2mm/min |
Flexural Strength (190MPa 1ISO178) Conditioned | 2mm/min |
Flexural Modulus (5700 MPa I ISO178) Conditioned | 5mm/ min |
Thermal Property of PA6 GF20
Melting Point | (220°C I ISO11357) |
Hot Deformation Temperature | (175*C I ISO75) |
Conditioned | 1.8MPa |
Flammability Class | (HB 1UL94) |
Conditioned | mm |
Injection Molding Conditions of PA6 GF20
Drying Temperature | 130°C |
Drying Time | 3h |
Cylinder Temperature | 240-260°C |
Nozzle Temperature | 240-260*C |
Tooling Temperature | 80*C |
* Molding conditions are just for reference, please make an adjustment based on the actual situation！
